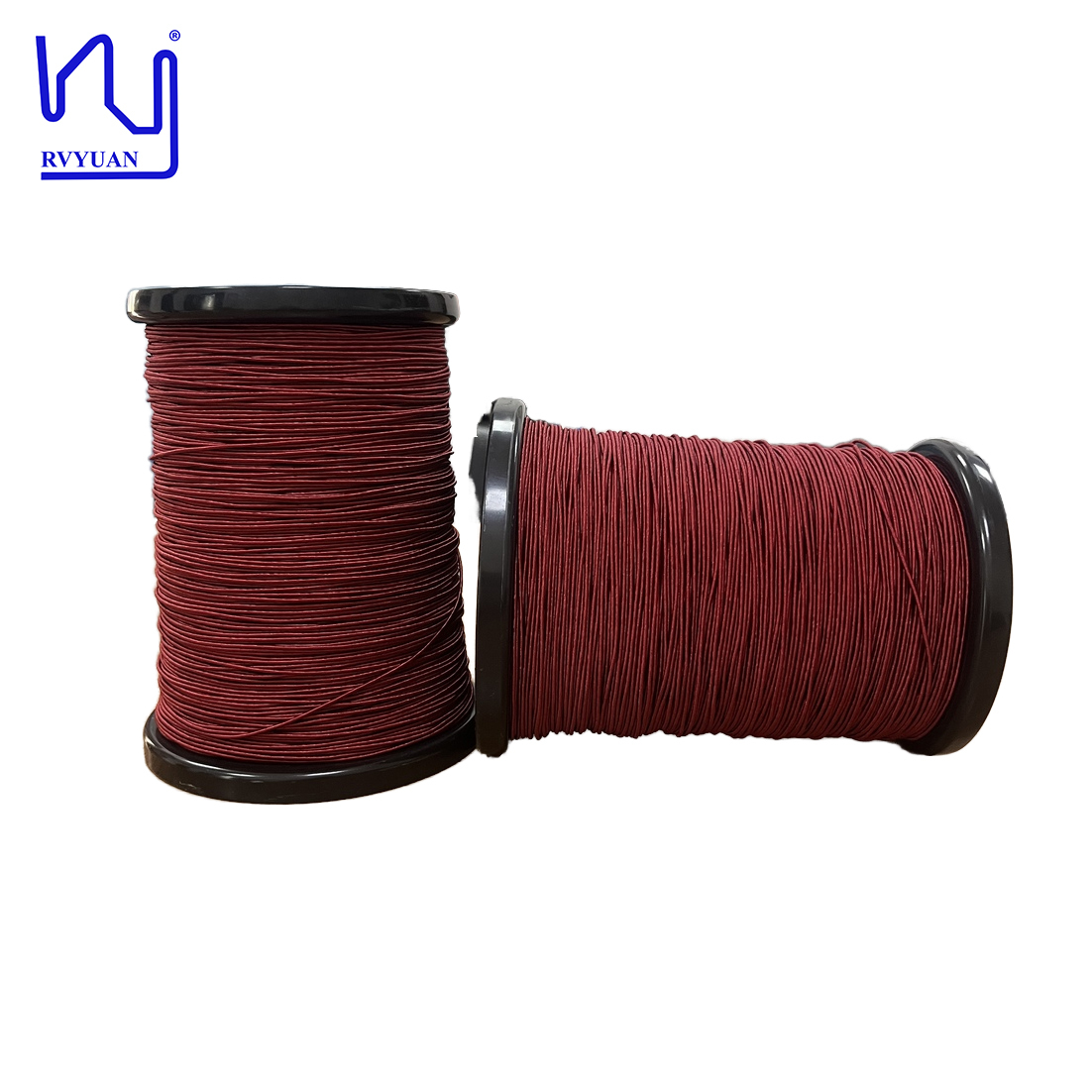

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire

Informazioni di base
Luogo di origine: Cina
Marca: RVYUAN
Certificazione: ISO9001/ISO14001 /UL/SGS
Numero di modello: USTC
Quantità di ordine minimo: 10 kg
Prezzo: negotiable
Imballaggi particolari: Bobina con cartone
Tempi di consegna: 2-15 giorni di lavoro
Termini di pagamento: T/ t/ paypal
Capacità di alimentazione: Soddisfare la tua domanda
Informazioni dettagliate
Diametro: 0,08 mm Temperatura: 155
Certificazione: IEC/NEMA/JIS/RoHS/ISO Conduttore: Rame
Fili: 270 Tensione di rottura: Min.1100
Materiale di copertura: nylon Nome del prodotto: Filo Litz ricoperto in seta da 0,08 mm a 27 fili ad alta frequenza
Parola chiave: Filo Litz ricoperto in seta da 0,08 mm a 27 fili ad alta frequenza
Evidenziare:

silk covered litz wire

,

high frequency litz wire

,

27 strands litz wire


Descrizione di prodotto

High Frequency Stranded 0.08mm 27 Strands Silk Covered Litz Wire
Silk covered Litz wire is widely used in transformer windings, wireless chargers for mobile phones, and electric vehicle charging stations. In transformers, its flexibility and durability enable efficient energy transfer and heat dissipation. In wireless chargers, the wire's stability and robustness ensure reliable performance and a long service life; while in electric vehicle charging stations, it supports high-frequency operation, thereby improving charging efficiency and safety.
Product Specifications
Item No. Our diameter of single wire mm Conductor diameter mm Overall dimension mm Resistance Ω/m Breakdown voltage V Pitch
Tech requirement 0.087-0.095 0.08±0.003 Max.2.04 ≤0.01398 ≥1100 29±5
Sample 1 0.89-0.091 0.078-0.08 1.7-1.82 0.01282 2700
