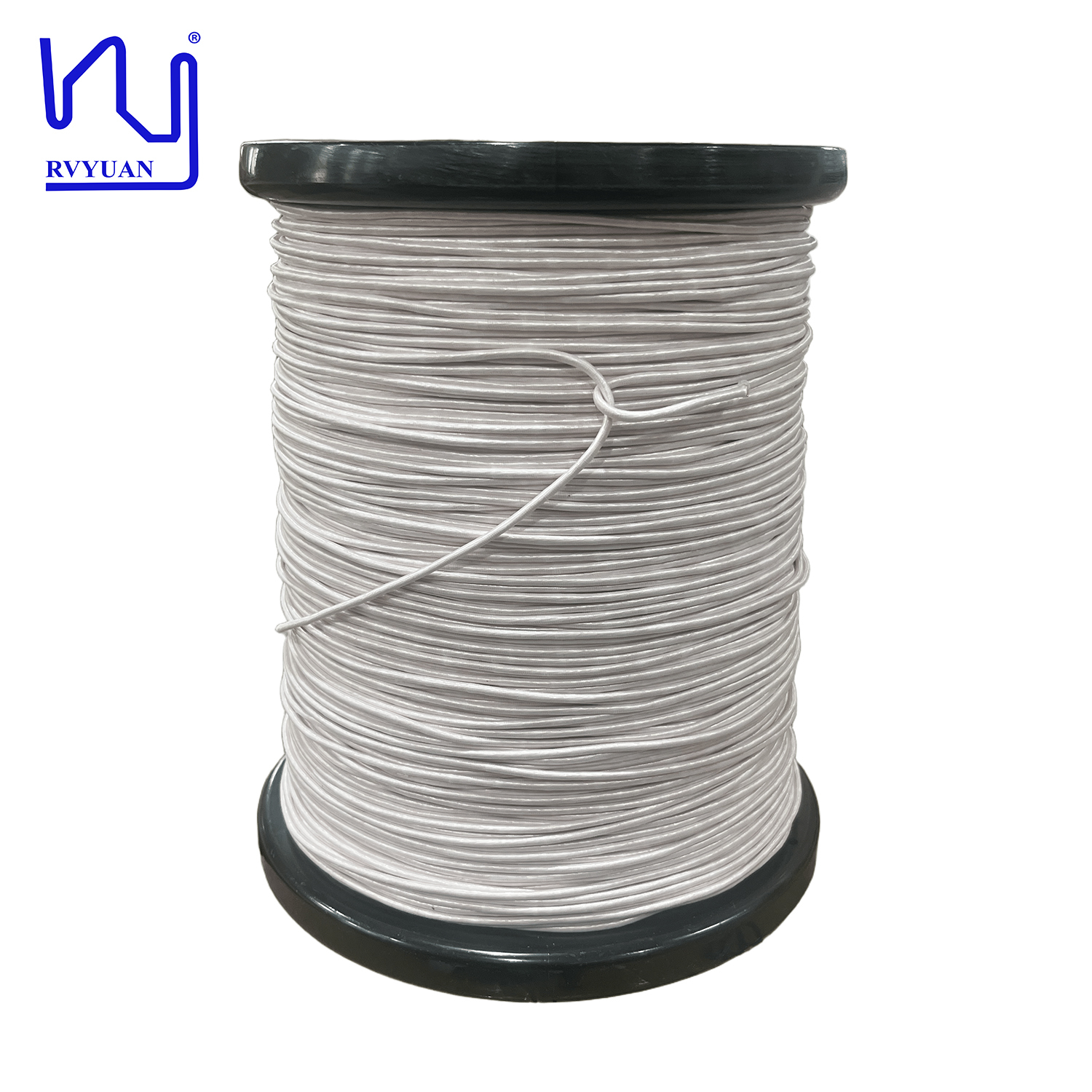

2USTC High Frequency Silk Coated Litz Wire 0.1x300Multi Strand Wires For Transformer

Informazioni di base

Luogo di origine:	Cina
Marca:	RVYUAN
Certificazione:	ISO9001/ISO14001 /UL/SGS
Numero di modello:	USTC

Quantità di ordine minimo:	50kg
Prezzo:	Negoziabile
Imballaggi particolari:	Bobina con cartone
Tempi di consegna:	15 giorni lavorativi
Termini di pagamento:	T/T/Paypal
Capacità di alimentazione:	Soddisfa la tua richiesta

Miglior prezzo Contattaci

Informazioni dettagliate

Diametro:	0,1 mm	Temperatura:	155
Certificazione:	IEC/NEMA/JIS/RoHS/ISO	Conduttore:	Rame
Fili:	300	Tensione di rottura:	Min.1100
Materiale di copertura:	Nylon	Parola chiave:	Filo Litz rivestito in seta ad alta frequenza 2USTC 0,1x300 Cavi multifilari per trasformatore
Evidenziare:	high frequency litz wire , silk coated litz wire , multi strand transformer wire

Descrizione di prodotto

2USTC High Frequency Silk Coated Litz Wire 0.1x300 Multi Strand Wires

This nylon serving litz wire is engineered for transformer windings in demanding applications including switch-mode power supplies, high-frequency inverters, and resonant converters. The litz construction significantly reduces AC resistance, enhancing energy efficiency while minimizing heat generation.

Key Applications & Benefits

Ideal for transformer windings in high-frequency power conversion circuits
Reduces AC resistance for improved energy efficiency
Minimizes heat generation in demanding applications
Nylon serving provides abrasion resistance and electrical isolation
Compact diameter enables higher packing density in transformer cores
Excellent voltage rating ensures reliable performance

Technical Specifications

Item	Tech Requirement	Sample 1	Sample 2
Diameter of Single Wire (mm)	0.107-0.125	0.110	0.113
Conductor Diameter (mm)	0.10±0.003	0.098	0.100
OD (mm)	Max. 2.65	2.28	2.38
Resistance Ω/m (20℃)	≤0.007937	0.007391	0.007400
Breakdown Voltage (V)	≥1100	2500	2800
Pitch	47±3	√	√
Pinhole Test	69 faults/6m	18	14
Solderability	Temp. 390±5℃ 8s Smooth surface, no pinholes, no residue	√	√

All specifications are subject to standard manufacturing tolerances. Contact us for detailed technical data sheets and custom requirements.
