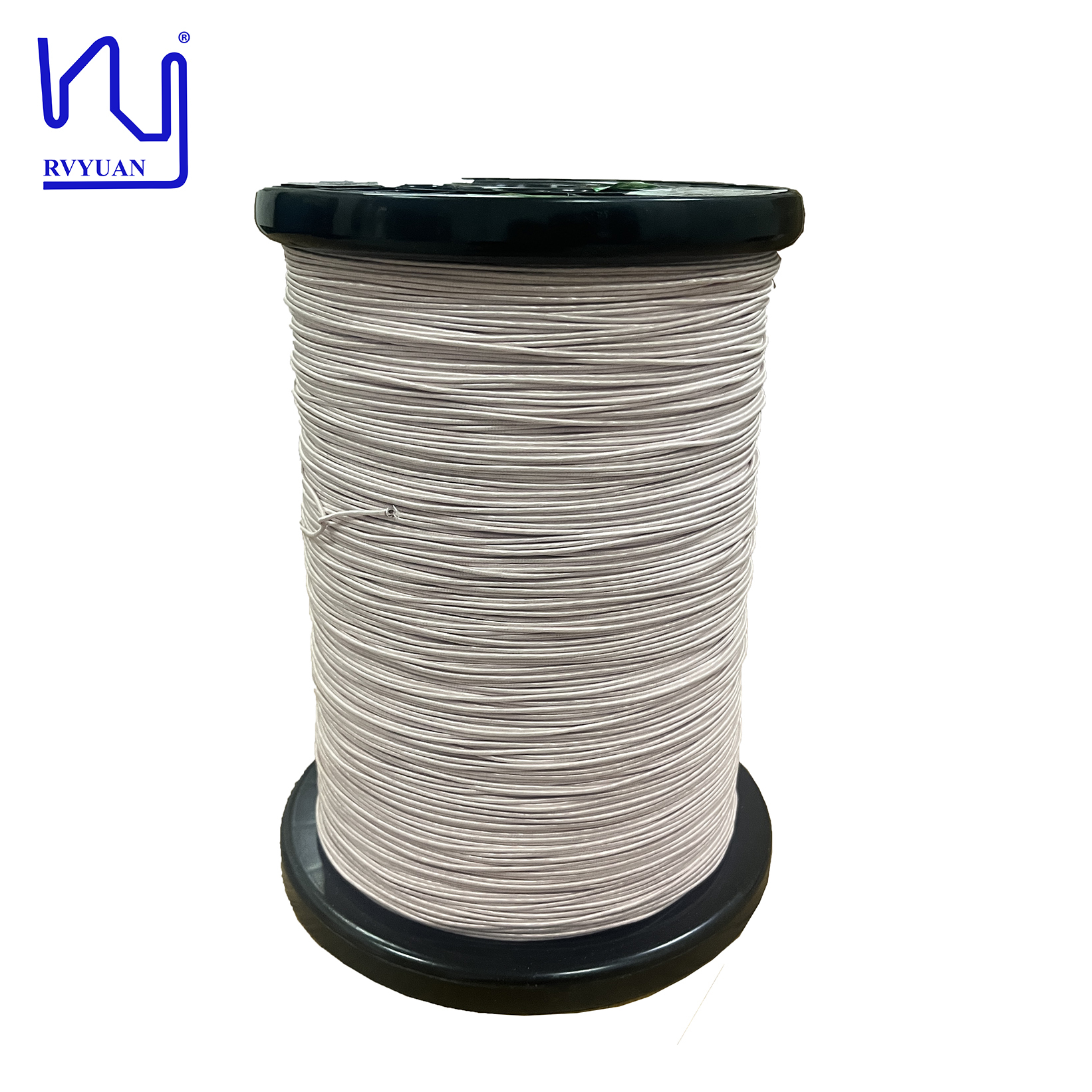

Name: Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: USTC
Price: 24.06 USD
Availability: InStock

Informazioni dettagliate

Diametro:	0,1 mm	Temperatura:	155
Certificazione:	IEC/NEMA/JIS/RoHS/ISO	Conduttore:	Rame
Fili:	100	Tensione di rottura:	Min.1100
Materiale di copertura:	nylon	Nome prodotto:	Cavo Litz personalizzato USTC UEW da 0,1 mm rivestito in seta per bobine di ricarica wireless
Parola chiave:	Cavo Litz personalizzato USTC UEW da 0,1 mm rivestito in seta per bobine di ricarica wireless
Evidenziare:	0.1mm silk covered Litz wire , customized USTC Litz wire for wireless charging , stranded silk Litz wire with warranty

Descrizione di prodotto

Customized USTC UEW 0.1mm Stranded Silk Covered Litz Wire for Wireless Charging Coils

Silk-covered Litz wire is used in applications that require high efficiency and low loss, particularly at high frequencies. Common applications include windings for transformers, motors, and high-frequency inductors, as well as in high-power lighting, video, and audio equipment. The silk covering adds insulation and durability while the Litz construction minimizes AC resistance.

Applications

Transformers and Motors: Used for windings in transformers and motors where efficiency is critical.
High-frequency electronics: Suitable for high-frequency applications such as RF transformers and transducers.
Inductors: Used in high-frequency and antenna inductors.
Audio and Video Equipment: Utilized in high-fidelity audio systems and other video equipment.
Industrial and Scientific Equipment: Found in high-power lighting systems, ultrasonic equipment, and inductive heating systems.
Automotive and Aerospace: Used in electronic components for these industries.

Why It's Used

Efficiency: The Litz construction minimizes skin and proximity effects, reducing resistance and energy loss.
Insulation: The silk cover provides an extra layer of electrical insulation and mechanical protection.
Performance: It improves the "Q" value and overall performance in high-frequency circuits.

Product Specifications

Item	Standard	Test value
Single wire outer diameter(mm)	0.107-0.125	0.110 \| 0.114
Conductor diameter(mm)	0.100±0.003	0.098 \| 0.10
Overall dimension(mm)	Max.1.43	1.3 \| 1.38
Pitch(mm)	27±5	√ \| √
Resistance(Ω/m at20℃)	Max.0.02381	0.0214 \| 0.0215
Pinhole	<45 faults/6m	8 \| 10
Breakdown voltage	>1100V	3300 \| 3400

Please send inquiries directly to request more information or quote!

Prodotto Tag:

Luogo di origine:	Cina
Marca:	RVYUAN
Certificazione:	ISO9001/ISO14001 /UL/SGS
Numero di modello:	USTC

Quantità di ordine minimo:	10 kg
Prezzo:	negotiable
Imballaggi particolari:	Bobina con cartone
Tempi di consegna:	2-15 giorni di lavoro
Termini di pagamento:	T/ t/ paypal
Capacità di alimentazione:	Soddisfare la tua domanda
