UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating

Informazioni di base
Luogo di origine: Cina
Marca: RVYUAN
Certificazione: UL/ISO9001/ISO14001/RoHS/Reach
Numero di modello: 0,1 mm
Quantità di ordine minimo: 1000 metri
Prezzo: negotiable
Imballaggi particolari: Cartone
Tempi di consegna: 7 giorni
Termini di pagamento: T/t/paypal
Capacità di alimentazione: 1ton/month
Informazioni dettagliate
Nome prodotto: Sicurezza UL 0,1MMX250 fili TIW Litz Wire Etfe Vestenza estrusata Classificazione termica: 155
Diametro a filo singolo: 0,1 mm Materiale del conduttore: Rame
N. di fili: 250 Insuazione: ETFE
Evidenziare:

UL safety Litz wire ETFE coating

,

TIW Litz wire 250 strands

,

ETFE extruded triple insulated wire


Descrizione di prodotto

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating
The combination of these properties makes ETFE insulated litz wire particularly suitable for high-frequency transformer winding applications where reliability and performance are critical. Its lightweight and flexible design, coupled with its excellent electrical performance, makes it the first choice for engineers and designers seeking efficient high-frequency wiring solutions.
Product Specifications
Characteristics Technical Requests Sample 1 Sample 2 Sample 3 Conclusion
Appearance Smooth & Clean OK OK OK OK
Diameter of single wire 0.10±0.003mm 0.100 0.100 0.099 OK
Thickness of Enamel ≥ 0.004mm 0.006 0.007 0.008 OK
OD of single wire 0.105-0.109mm 0.106 0.107 0.107 OK
Twist Pitch S28±2 OK OK OK OK
Insulation Thickness Min.0.1mm 0.12 0.12 0.12 OK
OD of Litz Wire Max. 2.2mm 2.16 2.16 2.12 OK
DC Resistance Max.9.81 Ω/km 9.1 9.06 9.15 OK
Elongation ≥ 13 % 23.1 21.9 22.4 OK
Breakdown Voltage ≥ 5K V 8.72 9.12 8.76 OK
Pin Hole 0 hole/5m 0 0 0 OK

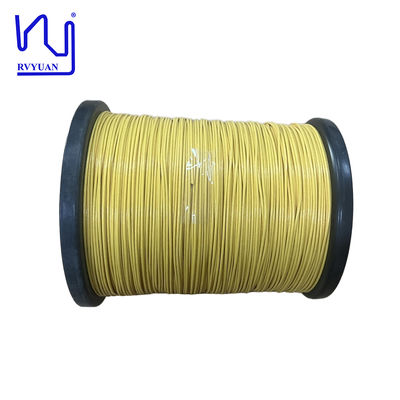

UL Safety 0.1mmX250 Strands TIW Litz Wire ETFE Extruded Coating 0
Customization & Support
We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.
