Informazioni dettagliate

Nome del prodotto:	Filo di rame isolato triplo certificato UL Classe F Cavo TIW isolato giallo da 0,15 mm	Classificazione termica:	155
Diametro a filo singolo:	0,15 mm	Materiale conduttore:	Rame
Insuazione:	ETFE
Evidenziare:	UL certified triple insulated wire , Class F yellow TIW wire , 0.15mm insulated copper wire

Descrizione di prodotto

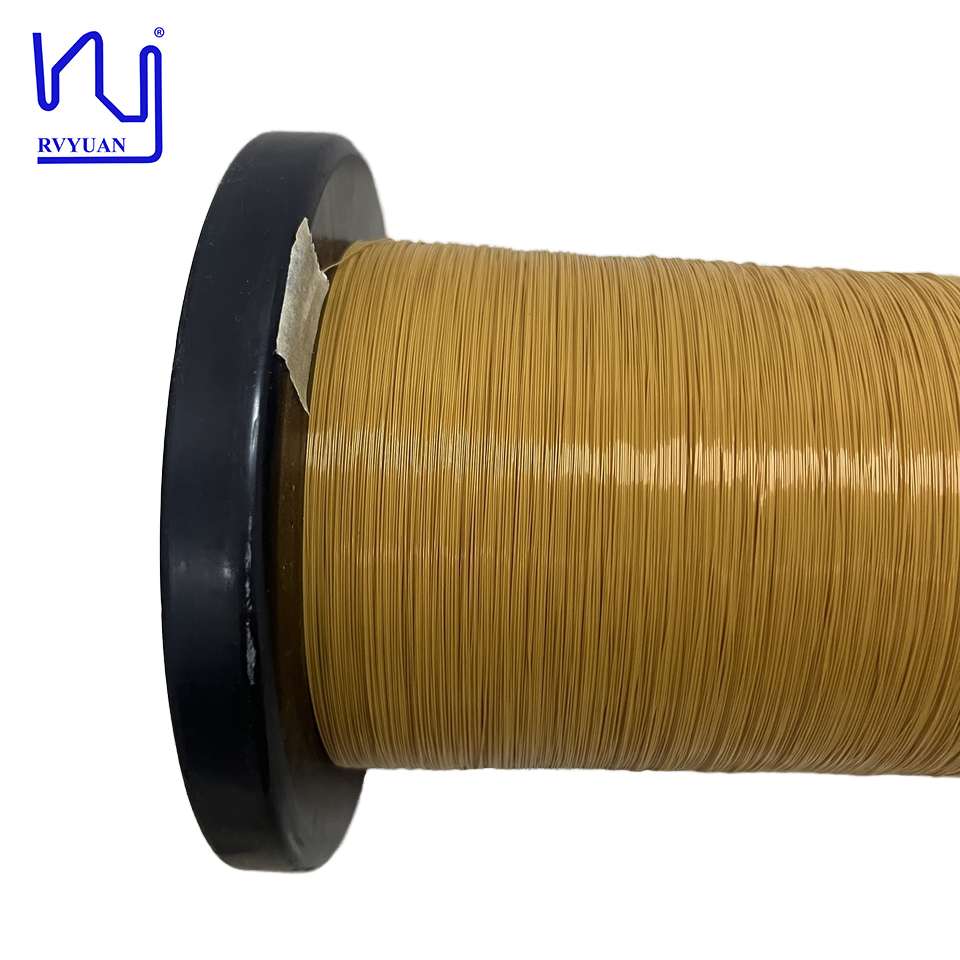

UL Certified Triple Insulated Copper Wire Class F Yellow 0.15mm Insulated TIW Wire

ETFE (ethylene-tetrafluoroethylene copolymer) triple insulated wires offer numerous advantages, making them ideal for a wide range of electrical applications.

ETFE exhibits excellent thermal stability, enabling the wires to operate efficiently at high temperatures without performance degradation.
ETFE provides excellent chemical resistance, effectively protecting the wires from corrosive chemicals and environmental factors.
The lightweight nature of the ETFE insulation helps reduce the overall weight of electrical systems.
The triple-insulation design further reduces the risk of short circuits, ensuring safer operation.

ETFE triple-insulated wires combine durability, safety, and efficiency, making them the preferred choice for modern electrical applications, including transformers and other high-performance equipment.

Product Specifications

Item	Standard	Test Result
Outer diameter of conductor (mm)	0.169mm(Max.)	0.163 \| 0.165 \| 0.163
Enamel coating thickness	0.008mm(min.)	0.013 \| 0.016 \| 0.014
Conductor	0.15±0.003mm	0.15 \| 0.149 \| 0.149
Elongation	15%(min.)	30.6 \| 30.6 \| 30.6
Overall dimension	0.350-0.365mm(max.)	0.359 \| 0.362 \| 0.359
Insulation thickness	0.1±0.01mm(min)	0.099 \| 0.101 \| 0.094
Pinhole	0 M/1 fault(max)	0 \| 0 \| 0
Resistance	1037Ω,km(max)	1007.3 \| 1001.6 \| 1004.8
Breakdown voltage	6KV(min)	16.6 \| 17 \| 17.6
Solderability(±10℃)	450℃ 3s smooth	ok \| ok \| ok

Customization & Support

We support small batch customization with a minimum order quantity of 1000 meters. Our professional team provides technical support and custom specifications are available upon request.

Prodotto Tag:

Luogo di origine:	Cina
Marca:	RVYUAN
Certificazione:	UL/ISO9001/ISO14001/RoHS/Reach
Numero di modello:	0,15 mm

Quantità di ordine minimo:	3000 metri
Prezzo:	negotiable
Imballaggi particolari:	cartone
Tempi di consegna:	7 giorni
Termini di pagamento:	T/t/paypal
Capacità di alimentazione:	1ton/month
