2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire

Informazioni di base

Luogo di origine:	Cina
Marca:	RVYUAN
Certificazione:	ISO9001/ISO14001 /UL/SGS
Numero di modello:	USTC

Quantità di ordine minimo:	10kg
Prezzo:	negotiable
Imballaggi particolari:	Spirale con cartone
Tempi di consegna:	2-15 giorni lavorativi
Termini di pagamento:	Negoziazione
Capacità di alimentazione:	Soddisfare la tua domanda

Miglior prezzo Contattaci

Informazioni dettagliate

Diameter:	0.1mm	Temperature:	155/180
Certificazione:	IEC/NEMA/JIS/RoHS/ISO	AWG SIZE:	38
Conductor:	Copper	Strands:	200
Breakdown voltage:	1300	Insulation:	UEW
Product name:	2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire	Key word:	2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire
Evidenziare:	Red Polyester Covered Litz Wire , 200 Strands Polyester Covered Litz Wire , Polyester Covered 0.1mm Litz Wire

Descrizione di prodotto

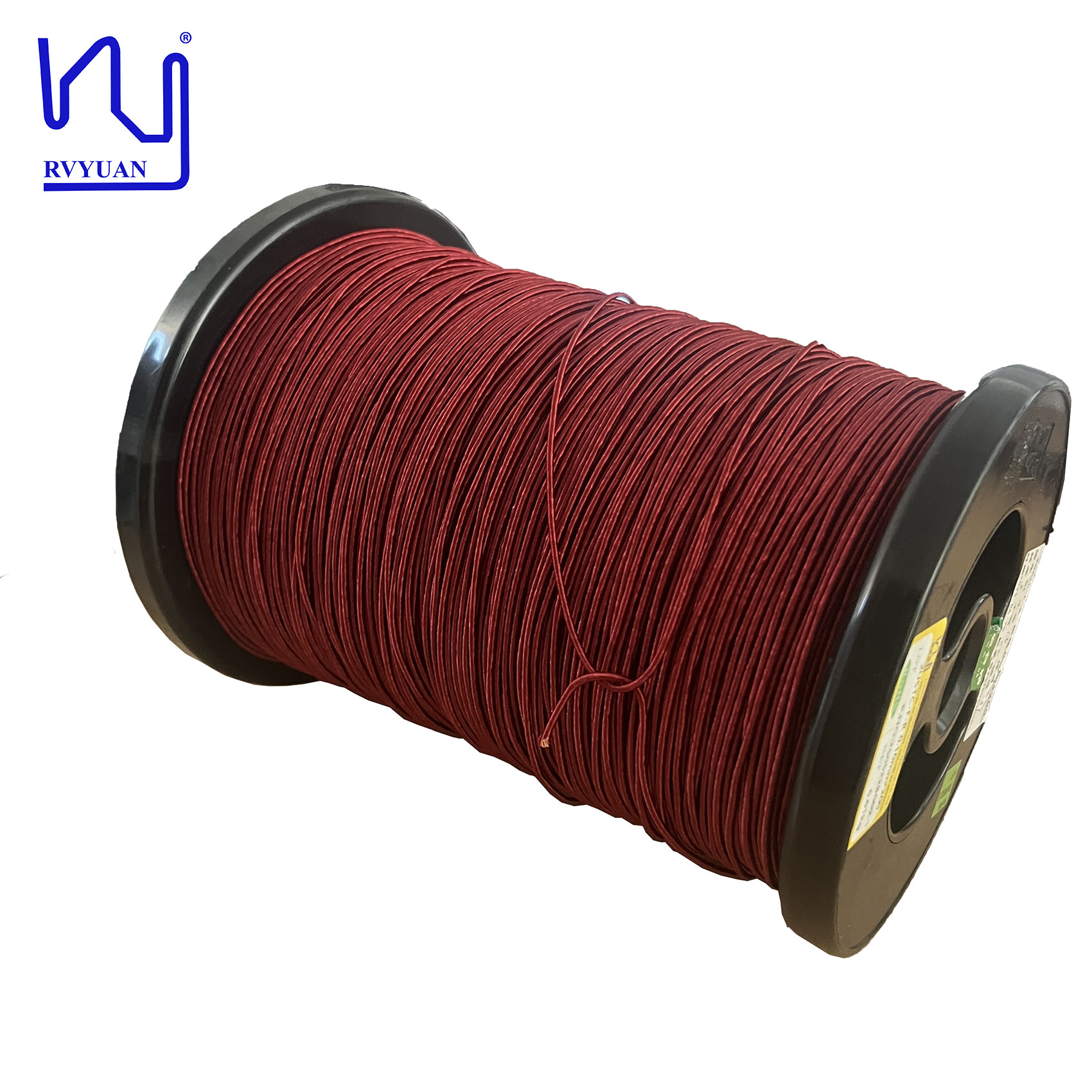

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire

This innovative wire features a unique bright red polyester outer covering that not only enhances aesthetics, but also offers exceptional durability and environmental resistance. Its inner core is carefully twisted with 200 strands of 0.1 mm enameled copper wire to ensure optimal conductivity and performance. Rated to 155 degrees Celsius, this wire is ideal for transformer applications because it can withstand the harsh environment of high frequency operation.

Outgoing test of stranded wire	Spec: 0.1x200	Model: 2USTC-F
Item	Standard	Test result
Outer conductor diameter(mm)	0.107-0.125	0.110-0.114
Conductor diameter(mm)	0.10±0.003	0.0980-0.10
Overall diameter (mm)	Max.1.98	1.75-1.85
Pitch(mm)	29±5	√
Max resistance (Ω/m at20℃)	Max. 0.01191	0.01088
Breakdown voltage Mini (V)	1100	3000

2USTC-F 0.1mmx200 Strands Red Color Polyester Covered Copper Litz Wire 0
