Ultra-thin 0.5x0.03mm Flat Enameled Copper Wire

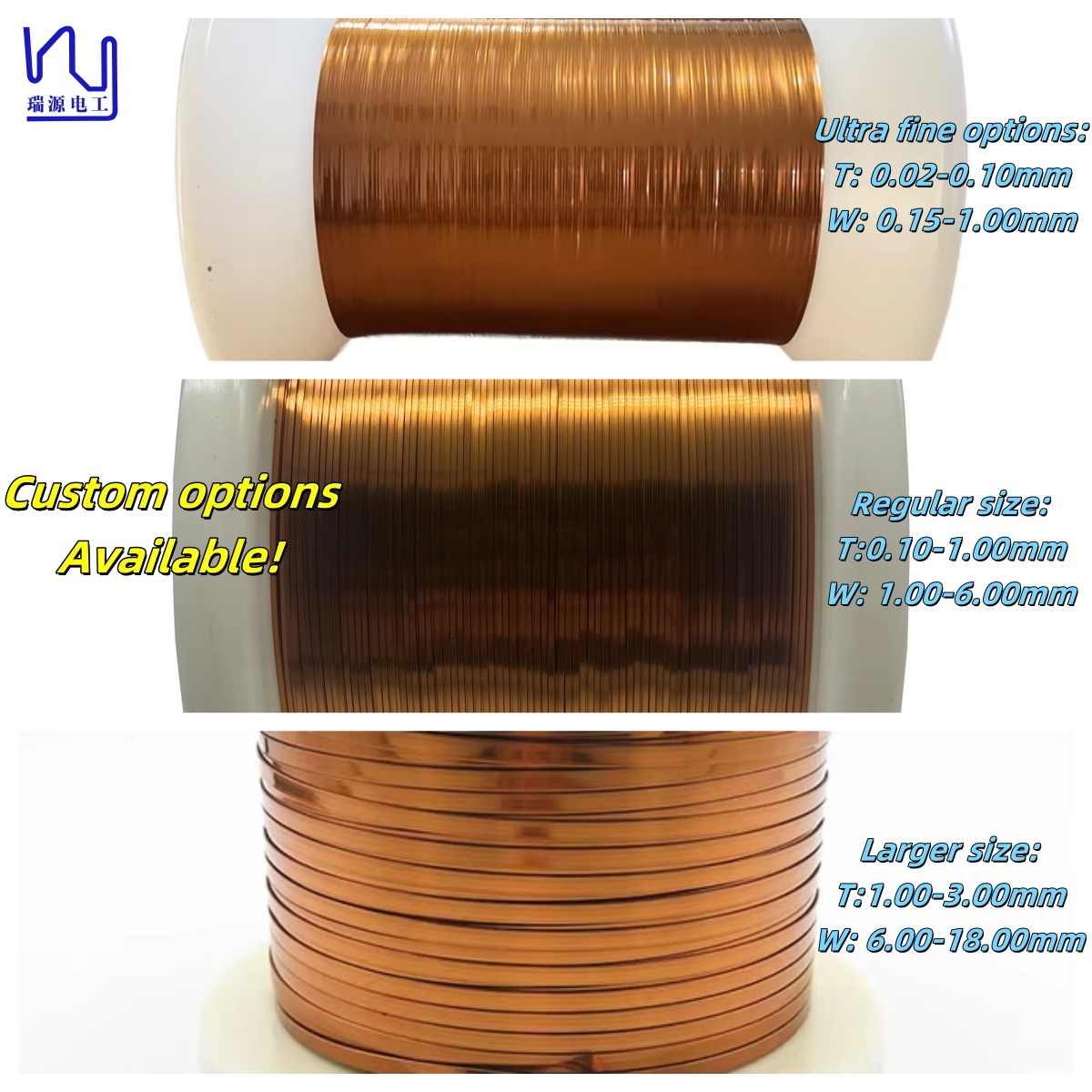

Ultra-thin AIW 220 °C 0.5×0.03 mm flat enameled copper wire, engineered for compact, high-frequency and high-power designs. Custom self-bondable AIW flat enameled copper wire options are also available. Thickness: 0.02 mm – 3.00 mm Width: 0.15 mm – 18.00 mm Width-to-thickness ratio: up to 1:30 Technical Parameters & Test Results Characteristics Standard Test Result Appearance Smooth, equality Smooth, equality Conductor Diameter (mm) — Width 0.48–0.52 mm 0.501 mm Conductor
