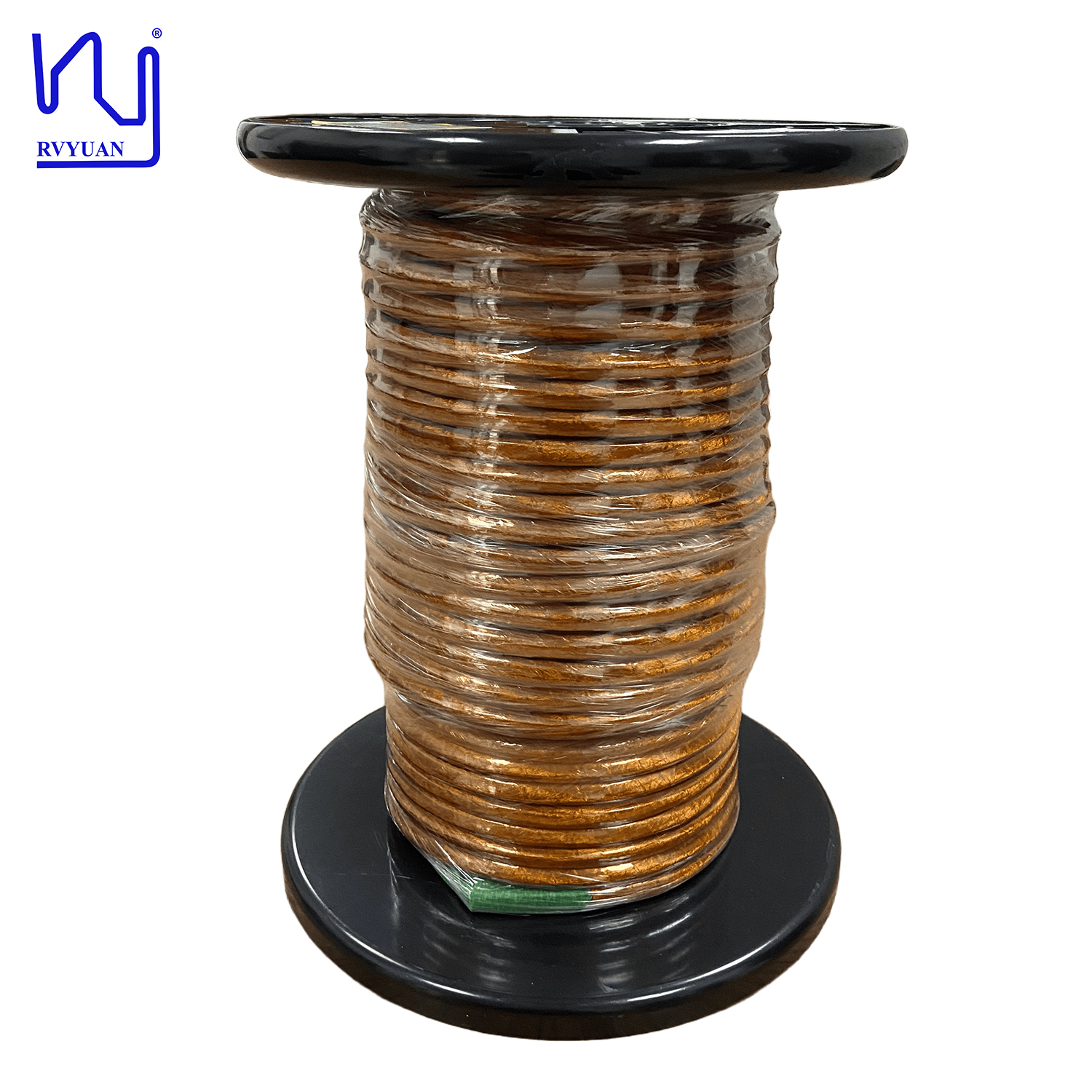

Flat taped litz wire 0.071x6500 PI Insulation Litz Wire For Transformer

Informazioni di base

Luogo di origine:	Cina
Marca:	RVYUAN
Certificazione:	ISO9001/ISO14001 /UL/SGS
Numero di modello:	USTC

Quantità di ordine minimo:	20kg
Prezzo:	Negoziabile
Imballaggi particolari:	Bobina con cartone
Tempi di consegna:	15 giorni lavorativi
Termini di pagamento:	T/T/Paypal
Capacità di alimentazione:	Soddisfa la tua richiesta

Miglior prezzo Contattaci

Informazioni dettagliate

Diametro:	0,071 mm	Temperatura:	155
Certificazione:	IEC/NEMA/JIS/RoHS/ISO	Conduttore:	Rame
Fili:	6500	Tensione di rottura:	Min.9500
Materiale di copertura:	Nastro	Parola chiave:	Filo litz piatto nastrato 0,071x6500 PI Cavo litz isolante per trasformatore
Evidenziare:	flat taped litz wire transformer , 0.071x6500 PI insulation litz wire , litz wire for transformer winding

Descrizione di prodotto

Flat Taped Litz Wire 0.071×6500 PI Insulation Litz Wire For Transformer

This flat taped litz wire is specifically designed for high-frequency transformers, grid-tied inductors, solid-state transformers, and high-power conversion systems. Its typical applications span renewable energy inverters (solar and wind), electric vehicle charging infrastructure, aerospace power supplies, industrial welding equipment, and traction systems for rail and heavy-duty vehicles. The combination of high strand count, precision flat geometry, and high-voltage-rated Kapton tape insulation offers engineers a reliable, ready-to-use solution that simplifies winding processes, improves thermal management, and ensures long-term durability under extreme electrical and thermal stress.

Technical Specifications

Item No.	Single Wire Diameter (mm)	Conductor Diameter (mm)	Width (mm)	Thickness (mm)	Resistance (Ω/m)	Breakdown Voltage (V)	Pitch
Tech Requirement	0.075-0.084	0.071±0.003	7.4±0.3	7.4±0.	≤0.000814	≥9500	130±200
Sample 1	0.076-0.078	0.068-0.069	9.38-7.54	9.38-7.54	0.000705	11400	√
