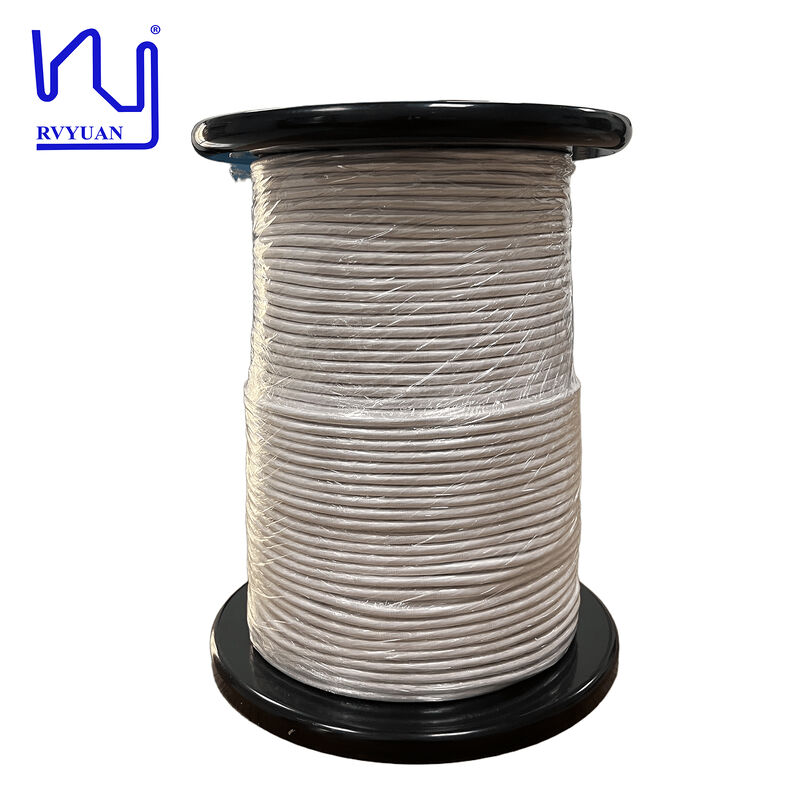

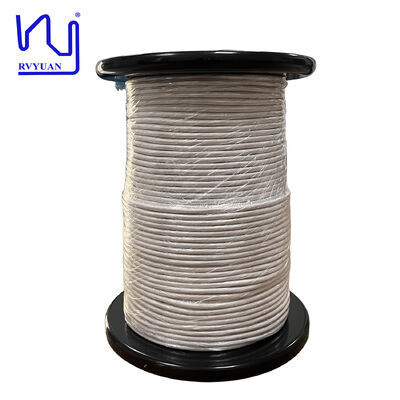

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire

Informazioni di base

Miglior prezzo Contattaci

Informazioni dettagliate

Diametro:	0,2 mm	Temperatura:	155
Certificazione:	IEC/NEMA/JIS/RoHS/ISO	Conduttore:	Rame
Fili:	300	Tensione di rottura:	Min.1400
Materiale di copertura:	Nylon	Parola chiave:	Filo intrecciato in rame ad alta frequenza da 0,2 mm x 300 fili Litz
Evidenziare:	0.2mm high frequency Litz wire , 300 strand copper Litz wire , high frequency stranded copper wire

Descrizione di prodotto

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire

Product Overview

0.2mmx300 High Frequency Litz Wire Copper Stranded Wire is engineered for high-frequency applications requiring optimal performance and reliability.

Main Application Areas

High-frequency inductors and transformers
Switching Power Supply (SMPS): Especially suitable for high-frequency flyback, forward, and LLC resonant transformers
Wireless charging coils: Used in smartphones, wearable devices, etc., with operating frequencies ranging from hundreds of kilohertz to megahertz
RF inductors: Used for resonance and filtering in RF circuits

Test Report & Specifications

Item No.	Outer diameter of single wire (mm)	Conductor diameter (mm)	Overall dimension (mm)	Resistance (Ω/m)	Breakdown voltage (V)	Pitch
Tech requirement	0.216-0.231	0.2±0.003	Max. 5.21	≤0.001924	≥1600	130±20
Sample 1	0.05	0.198-0.20	4.53-4.85	0.001821	400	√

Technical Specifications
