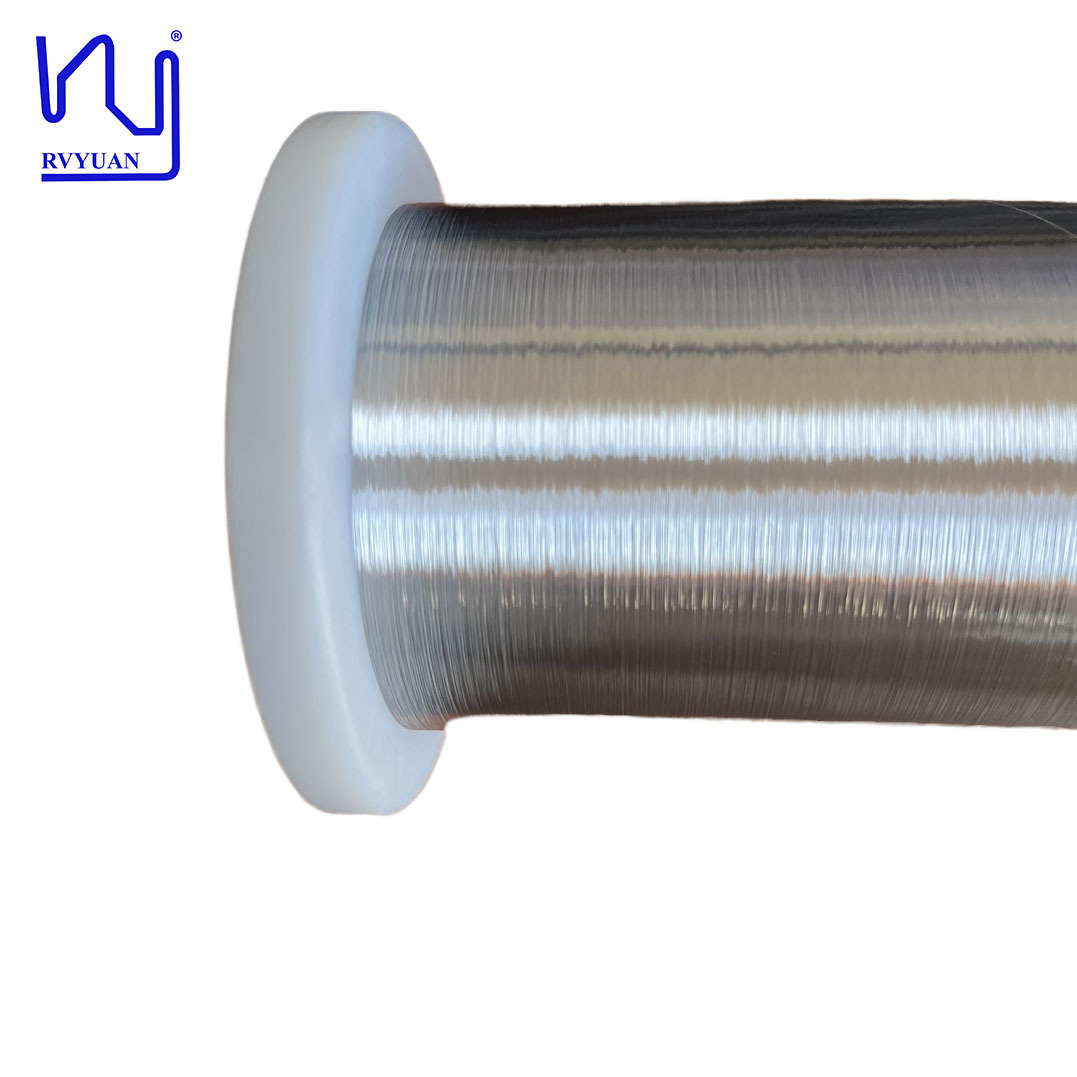

Name: 0.1mm Soft Silver Plated Copper Wire SPC Wire For Audio
Brand: Tianjin Ruiyuan Electric Material Co,.Ltd
SKU: Spc
Price: 24.06 USD
Availability: InStock

Informazioni dettagliate

Nome del prodotto:	Filo SPC in filo di rame placcato argento morbido da 0,1 mm per audio	Classificazione termica:	155
Materiale isolante:	Smalto	Diametro:	0,05 mm
Materiale conduttore:	Argento	Parola chiave:	Filo SPC in filo di rame placcato argento morbido da 0,1 mm per audio
Evidenziare:	0.1mm soft silver plated copper wire , SPC wire for audio , OCC wire with warranty

Descrizione di prodotto

0.1mm Soft Silver Plated Copper Wire SPC Wire For Audio

Why Silver-Plated Copper Wire is Ideal for Audio Applications

Superior Conductivity: Silver has better conductivity than copper. The silver plating layer effectively reduces resistance in signal transmission, ensuring efficient transmission of audio signals and minimizing signal loss.
High-Frequency Performance: The silver plating performs exceptionally well in high-frequency signal transmission, enabling better transmission of high-frequency audio signals and improving sound clarity and detail.
Oxidation Resistance: The silver plating provides oxidation protection, reducing oxidation at contact points to maintain good electrical connections and ensure long-term stable performance.
Sound Quality Enhancement: Audio enthusiasts and professionals recognize that silver-plated copper wire provides richer audio details and superior sound quality, particularly in high-end audio systems.
Lightweight: Silver-plated copper wire is relatively lightweight, making it easy to use in audio equipment and reducing overall system weight.

Standard Specifications for Monocrystalline Silver

Diameter (mm)	Tensile Strength (Mpa)	Elongation (%)	Conductivity (IACS%)	Purity (%)
	Hard state \| Soft state	Hard state \| Soft state	Hard state \| Soft state
3.0	≥320 \| ≥180	≥0.5 \| ≥25	≥104 \| ≥105	≥99.995
2.05	≥330 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
1.29	≥350 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
0.102	≥360 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995

In conclusion, silver-plated copper wire is an ideal choice for high-end audio cables due to its excellent conductivity, high-frequency performance, and oxidation resistance.

Prodotto Tag:

Luogo di origine:	Cina
Marca:	Ruiyuan
Certificazione:	UL/ISO9001/ISO14001/RoHS/Reach
Numero di modello:	Spc

Quantità di ordine minimo:	2kg
Prezzo:	negotiable
Imballaggi particolari:	cartone
Tempi di consegna:	2-15 giorni
Termini di pagamento:	Negoziazione
Capacità di alimentazione:	10 t/settimana

Diameter (mm)	Tensile Strength (Mpa)	Elongation (%)	Conductivity (IACS%)	Purity (%)
	Hard state \| Soft state	Hard state \| Soft state	Hard state \| Soft state
3.0	≥320 \| ≥180	≥0.5 \| ≥25	≥104 \| ≥105	≥99.995
2.05	≥330 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
1.29	≥350 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
0.102	≥360 \| ≥200	≥0.5 \| ≥20	≥103.5 \| ≥104	≥99.995
