| Luogo di origine: | Cina |
|---|---|
| Marca: | RVYUAN |
| Certificazione: | UL/ISO9001/ISO14001/RoHS/Reach |
| Numero di modello: | AWG 42 |
| Quantità di ordine minimo: | 2 kg |
| Prezzo: | negotiable |
| Imballaggi particolari: | Cartone |
| Tempi di consegna: | 3 giorni |
| Termini di pagamento: | T/t/paypal |
| Capacità di alimentazione: | 1ton/month |

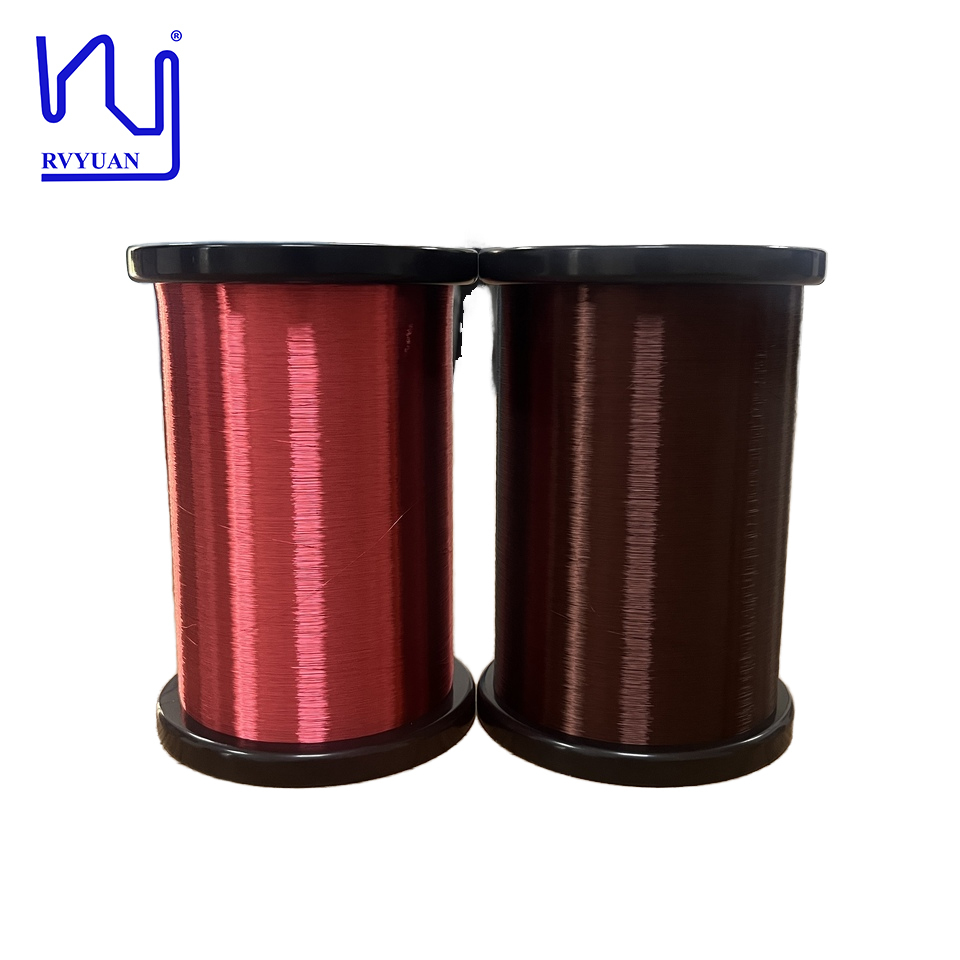

| Nome del prodotto: | Filo smaltato rivestito in poliestere di colore rosso 42AWG, filo di rame in poliuretano per chitarr | Isolamento: | Poli rosso |
|---|---|---|---|
| Misurare: | AWG42 | Applicazione: | Bobine delle raccolte della chitarra |
| MOQ: | 2 kg (1 rotolo) | ||
| Evidenziare: | 42AWG red magnet wire,polyurethane coated guitar wire,copper pickup wire for guitar | ||
We supply some of the world's guitar pickup craftsmen with wire custom made to order. Our Pickup Wire started with an Italian customer several years ago, after a year of R&D, and half-year blind and device test in Italy, Canada, Australia. Since launched into markets, Ruiyuan Pickup Wire won a good reputation and has been chosen by over 300 pickups clients from Europe, America, Asia, etc.
Customized colors and size: only 20kg you can choose your exclusive color.
We mainly manufacture Plain, heavy Formvar insulation and poly insulation wire, for the simple reason that they just sound best to our ears.
The thickness of the wire is usually measured in AWG, which stands for American Wire Gauge. In guitar pickups, 42 AWG is the one that's most commonly used. But wire-types measuring from 41 to 46 AWG are all being used in the construction of guitar pickups.
The most professional guitar pickup wire manufacturer, we offer formvar/plain enameled copper wire. 42awg, 43awg, 44awg. The wire is mainly used in winding guitar pickups, and is a favorite among many custom pickup shops.
| Characteristics | Technical requests | Test results |
|---|---|---|
| Conductor diameter | 0.063mm±0.002 | 0.063mm | 0.063mm | 0.063mm |
| Overall dimension | ≤0.074mm | 0.071mm | 0.072mm | 0.073mm |
| Conductor resistance | ≤ 5.900 Ω/m | 5.478 | 5.512 | 5.482 |
| Breakdown voltage | ≥ 400 V | 1768 | 1672 | 1723 |
