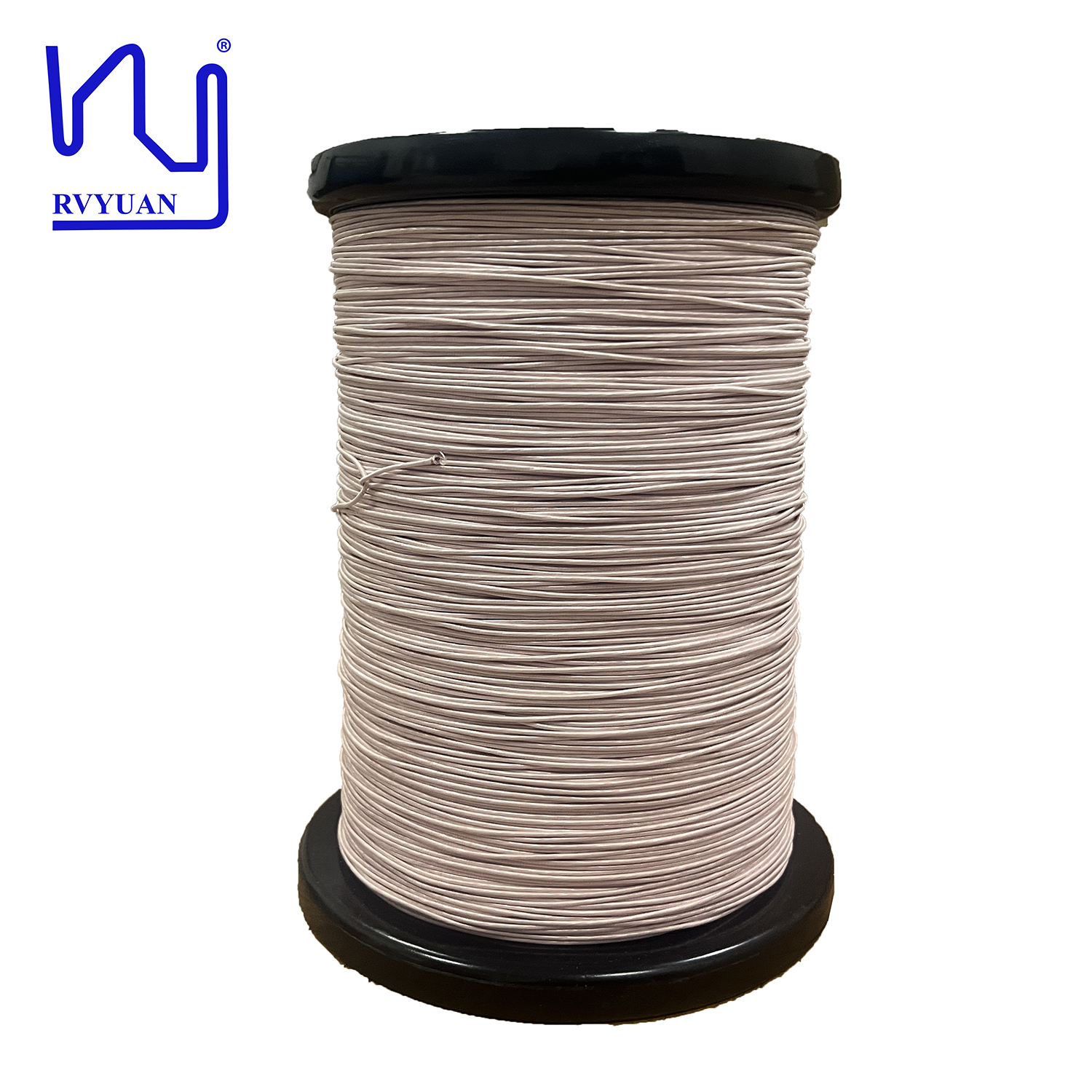

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
Informazioni di base
Luogo di origine: Cina
Marca: RVYUAN
Certificazione: ISO9001/ISO14001 /UL/SGS
Numero di modello: USTC
Quantità di ordine minimo: 10 kg
Prezzo: negotiable
Imballaggi particolari: Bobina con cartone
Tempi di consegna: 2-15 giorni di lavoro
Termini di pagamento: T/ t/ paypal
Capacità di alimentazione: Soddisfare la tua domanda
Miglior prezzo Contattaci
Informazioni dettagliate
Diametro: 0,1 mm Temperatura: 155
Certificazione: IEC/NEMA/JIS/RoHS/ISO Conduttore: Rame
Fili: 100 Tensione di rottura: Min.1100
Materiale di copertura: nylon Nome prodotto: Filo Litz in rame rivestito in seta smaltato ad alta temperatura e alta frequenza USTC da 100/0,1 mm
Parola chiave: Filo Litz in rame rivestito in seta smaltato ad alta temperatura e alta frequenza USTC da 100/0,1 mm
Evidenziare:

high temperature enameled litz wire

,

silk covered copper litz wire

,

high frequency ustc litz wire

Descrizione di prodotto

100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire
Nylon served Litz wire offers advantages like enhanced mechanical protection and durability, improved insulation, and increased efficiency in high-frequency applications. The nylon serving provides a tough outer layer that protects against abrasion and mechanical stress, while the Litz construction of individual, insulated strands minimizes AC resistance. This combination makes the wire suitable for demanding environments and applications like motors, transformers, and high-frequency circuits.
Mechanical and Physical Advantages
  • The nylon serving provides strong mechanical protection against abrasion, bending, and stretching, increasing the wire's lifespan, especially in complex or demanding environments.
  • Mechanical strength: The nylon overcoat improves the wire's ability to withstand mechanical stress, making it suitable for high-speed winding applications.
Product Specifications
Item Standard Test value
Single wire outer diameter(mm) 0.107-0.125 0.110 | 0.114
Conductor diameter(mm) 0.100±0.003 0.098 | 0.10
Overall dimension(mm) Max.1.43 1.3 | 1.38
Pitch(mm) 27±5 √ | √
Resistance(Ω/m at20℃) Max.0.02381 0.0214 | 0.0215
Pinhole <45 faults/6m 8 | 10
Breakdown voltage >1100V 3300 | 3400
100/0.1mm USTC High Temperature High Frequency Wire Enameled Silk Covered Copper Litz Wire 0
Please send inquiries directly to request more information or quote!
