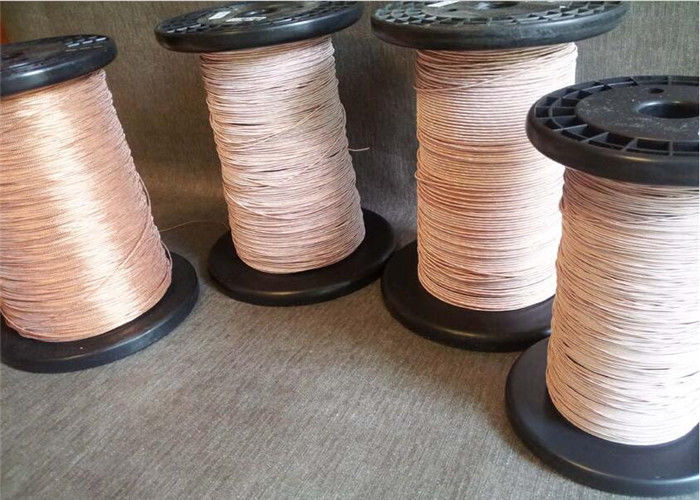

Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer

Informazioni di base
Luogo di origine: Cina
Marca: RVYUAN
Certificazione: ISO9001/ISO14001 /UL/SGS
Numero di modello: USTC
Quantità di ordine minimo: 10 kg
Prezzo: negotiable
Imballaggi particolari: Bobina con cartone
Tempi di consegna: 2-15 giorni di lavoro
Termini di pagamento: T/ t/ paypal
Capacità di alimentazione: Soddisfare la tua domanda
Informazioni dettagliate
Diametro: 0,071 mm Temperatura: 155
Certificazione: IEC/NEMA/JIS/RoHS/ISO Conduttore: Rame
Fili: 250 Tensione di rottura: 1300
Isolamento: Uew Nome prodotto: Filo litz coperto di seta personalizzato 0,025 mm-0,5 mm filo litz a filo a filo per trasformatore
Parola chiave: Filo litz coperto di seta personalizzato 0,025 mm-0,5 mm filo litz a filo a filo per trasformatore
Evidenziare:

custom silk litz wire

,

stranded copper litz wire

,

transformer litz wire


Descrizione di prodotto

Customized Silk Covered Litz Wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer
Our company specializes in providing custom silk covered litz wire, with single wire sizes ranging from 0.025mm to 0.5mm. We offer a wide range of strand counts, from single-strand to 13,000 strands, ensuring that we can meet your specific needs. In addition to silk-covered litz wire, we also supply taped litz wire and flat taped litz wire. Our products are meticulously crafted to meet your system requirements, ensuring optimal performance and reliability. With a commitment to quality and customization, we work closely with our clients to deliver litz wire solutions that perfectly align with their applications. Trust us to provide the ideal litz wire tailored to your specifications.
Product Specifications
Attribute Value
Diameter 0.071mm
Temperature 155
Certification IEC/NEMA/JIS/RoHS/ISO
Conductor Copper
Strands 250
Breakdown voltage 1300
Insulation UEW
Technical Specifications
Item Technical requests Test value 1 Test value 2
Conductor Diameter (mm) 0.076-0.084 0.079 0.080
Single wire diameter (mm) 0.071±0.003 0.068 0.070
O.D. (mm) Max. 1.85 1.57 1.68
Resistance Ω/m (20℃) Max. 0.01196 0.01815 0.01812
Breakdown Voltage V 950 3100 3000
Pitch mm 29± 5
No. of strands 250
Explore the endless possibilities of our natural silk-covered litz wire and experience the extraordinary experience of working with a trusted industry leader. Contact us today to discuss your needs and let us create the perfect wire solution for your next project.
Customized silk covered litz wire 0.025mm-0.5mm Stranded Copper Litz Wire for Transformer 0
